ZEN PX2 Handheld X-ray

ZEN-PX2

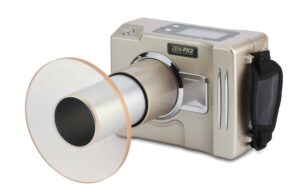

The ZEN PX2 Handheld X-ray is a portable X-ray generator. Perfect for the practitioner on the go! ZEN PX2 Handheld X-ray is lightweight and very compact. Ideal for cramped dental operatories, or operatories with multiple tables for faster acquisition of X-rays. LCD screen at the top of the unit allows for quick changes in exposure. The ZEN PX2 Handheld X-ray will take 100 X-rays when fully charged!

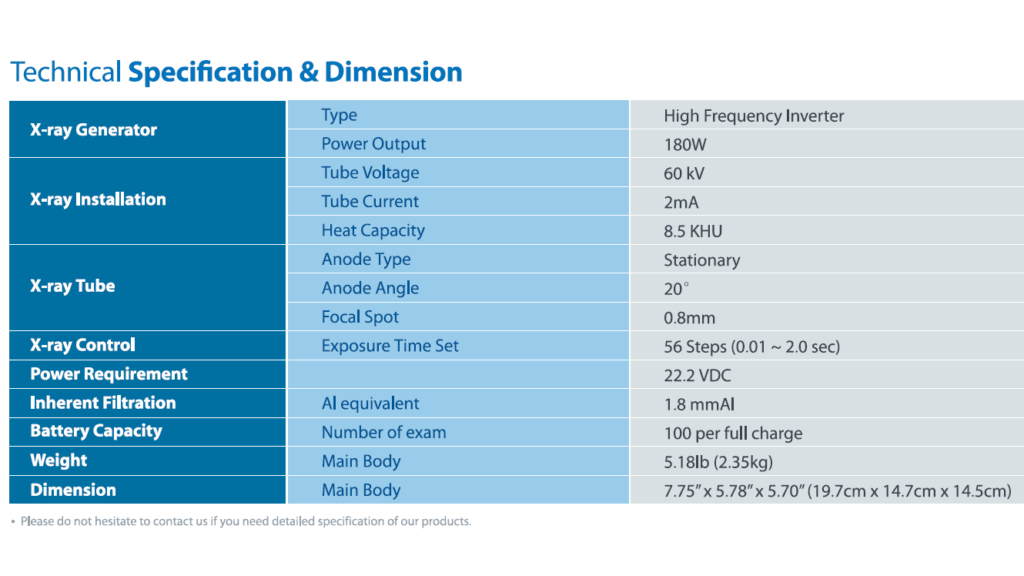

Specifications:

  • Generator Type: High-Frequency Inverter
  • Generator Power Output: 180W
  • Tube Voltage: 60 kV
  • Tube Current: 2mA
  • Heat Capacity: 8.5 KHU
  • Tube Anode Type: Stationary
  • Tube Anode Angle: 20”
  • Tube Focal Spot: 0.8mm
  • X-ray Control Exposure Time Set: 56 Steps (0.01~2.0 sec)
  • Power Requirement: 22.2 VDC
  • Inherent Filtration Al equivalent: 1.8 mm Al
  • Battery Capacity: 100 exams per full charge
  • Weight: 5.18lb (2.35kg)
  • Dimension: 7.75” x 5.78” x 5.70” (19.7cm x 14.7cm x 14.5cm)
